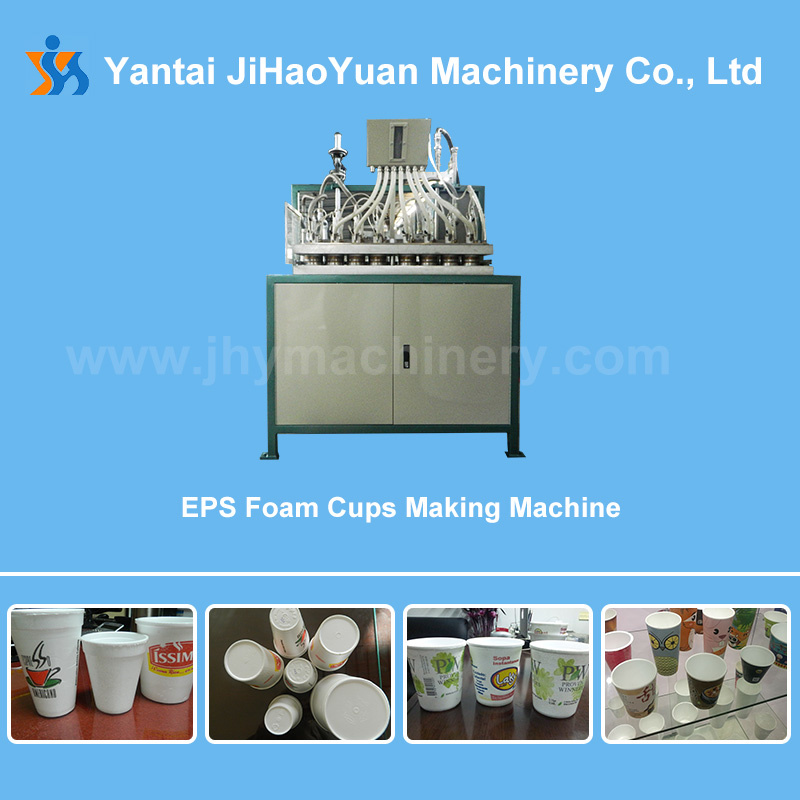

EPS Foam Cups Making Machine

Short Description:

EPS foam cup machine can be used to produce light weight, good rigidity, good insulation disposable cups, soup cups, coffee cups and instant noodles cups etc. The equipment has the advantages of high foaming magnification, high production efficiency, low energy consumption, low cost and the ability to carry out production of cups with different specifications at the same time. The whole feeding system is made of stainless steel, corrosion-resistant and easy to clean. The main process of pre-foaming, forming use automated operations, such as feeding, foaming ,forming, all are automatic control The related machinery part, electrical control components used in all domestic and international brand-name quality products.

Send email to us

Features

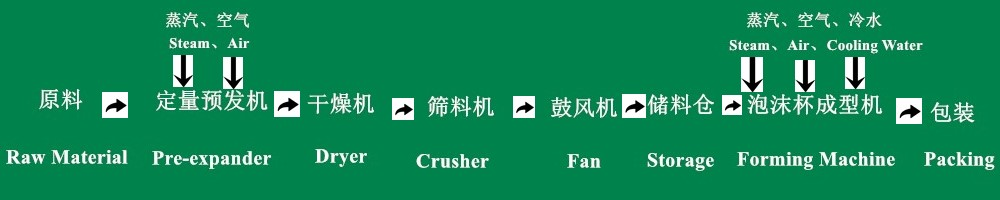

The total production line includes the cups forming machine with molds, expander, dryer, crusher and auto-feeding system. The asist equipment is cooling water tower,air compressor and boiler. EPS(Extendable polystyrene) Granules are the material of the cups and it is foamed by steam.

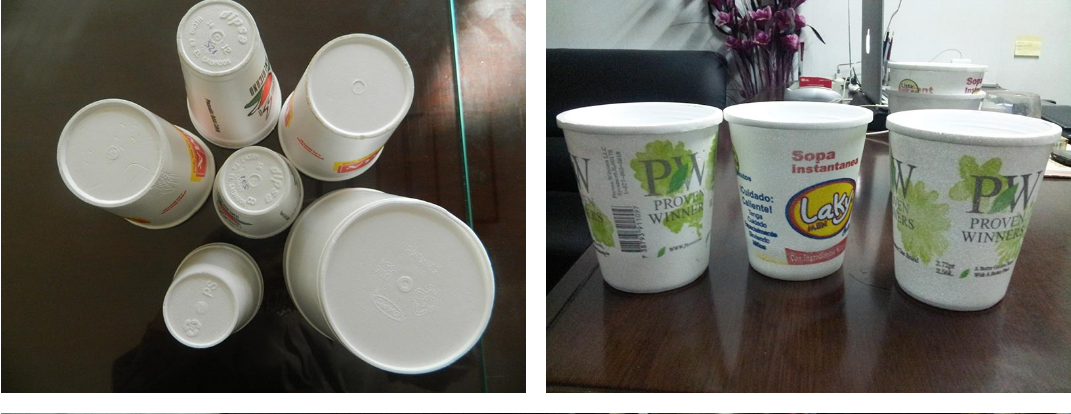

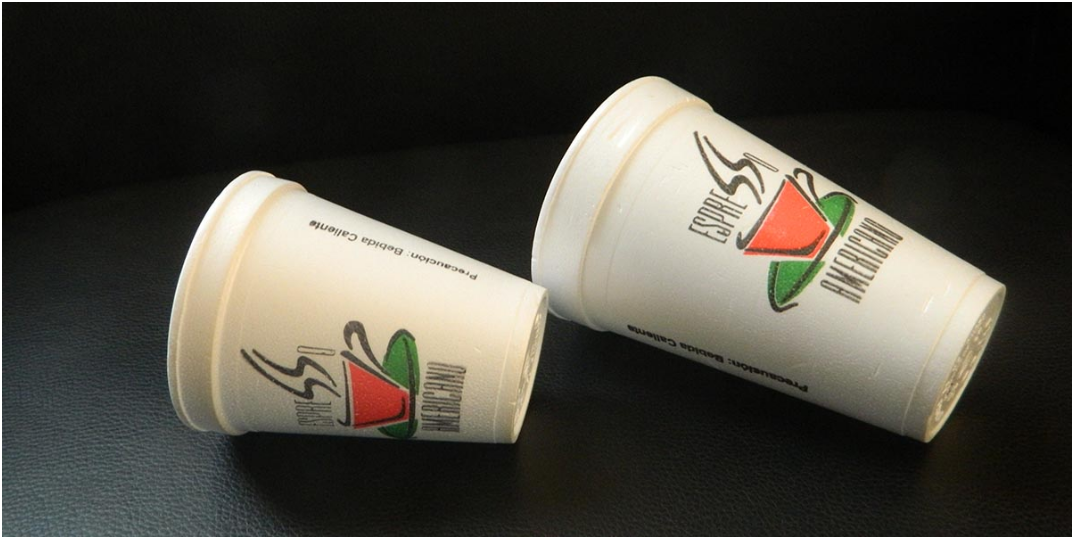

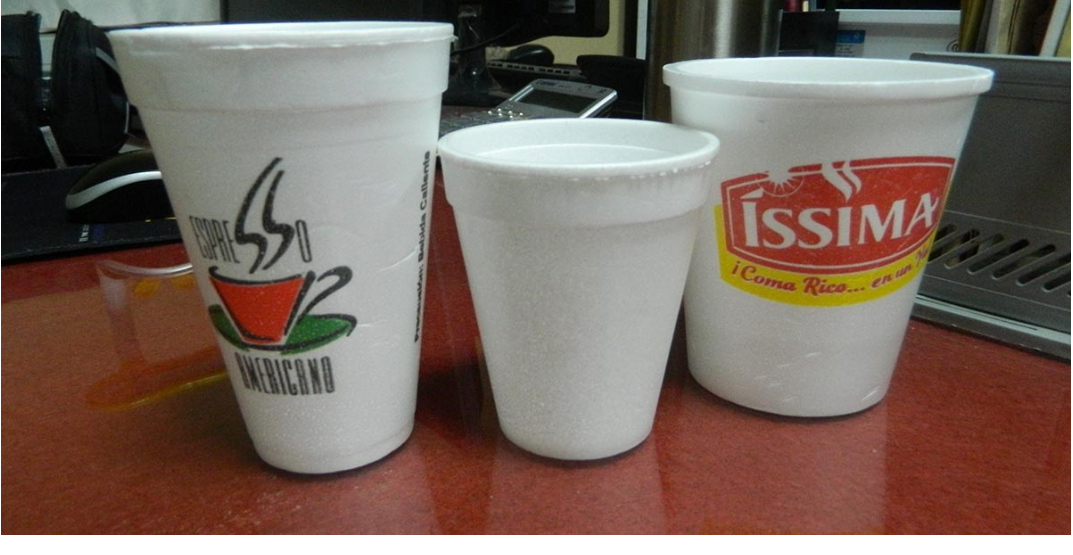

1. EPS Foam cups production line is used to produce large quantities of hot coffee cup, hot tea cup, hot soup bowl, instant noodles bowl and other beverage packing products.

2. Light weight,good rigidityand well heat insolation.

3. The machien holds many merits such as high foaming times, high producing efficiency,low steam consumption,low cost and different model products made at the same time.

4. Pipes and tubes of the transferring system are all made from stainless material so that they resist eroding and easy to be cleaned.

5. Pre-expand and forming procedures are all operated by automatic controler, the mechanical and electrical device are all from th famous brand in domestic and broad.

Techanical Data

Technical Parameter	Unit	ZLS-1100/310
Forming Area	MM	1100x310
Forming Height	MM	3-180
Production Efficiency	Sec/Die	≤7-16
Power Consumption	KW/Day	≤0.3
External Power Supply	V	220
Steam Pressure	Bar	6-9
Steam Connection	Inch	1
Cool Water Pressure	Bar	4-5
Cool Water Connection	Inch	1
Air Pressure	Bar	6-9
Air Connection	Inch	1
